| Miejsce pochodzenia: | Guangdong, Chiny |
|---|---|
| Nazwa handlowa: | UNIMETRO |
| Orzecznictwo: | CE,ISO |
| Numer modelu: | Seria SV |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Drewniana skrzynka + pakiet próżniowy |
| Czas dostawy: | 15 ~ 20 dni |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 5 zestawów miesięcznie |
| Model: | Seria SV | Nazwa produktu: | W pełni automatyczna maszyna do pomiaru wzroku - SV3 |
|---|---|---|---|
| Powtarzalność: | 2 um | Dokładność: | 2+L/200um |
| Rozdzielczość skali liniowej: | 0,5um (0,1um dla opcjonalnie) | Tryb pomiarowy: | W pełni automatyczny |
| Wsparcie: | OEM, ODM, dostosuj | Sceneria aplikacji: | Laboratorium/Przemysł |
| Gwarancja: | 12 miesięcy | Waga (kg): | 400 |
| Pomiar wściekłości: | 300/300/200 | ||
| Podkreślić: | SV Series vision measuring machine,high-efficiency vision measurement machine,MARB multi-axis resolution base |
||

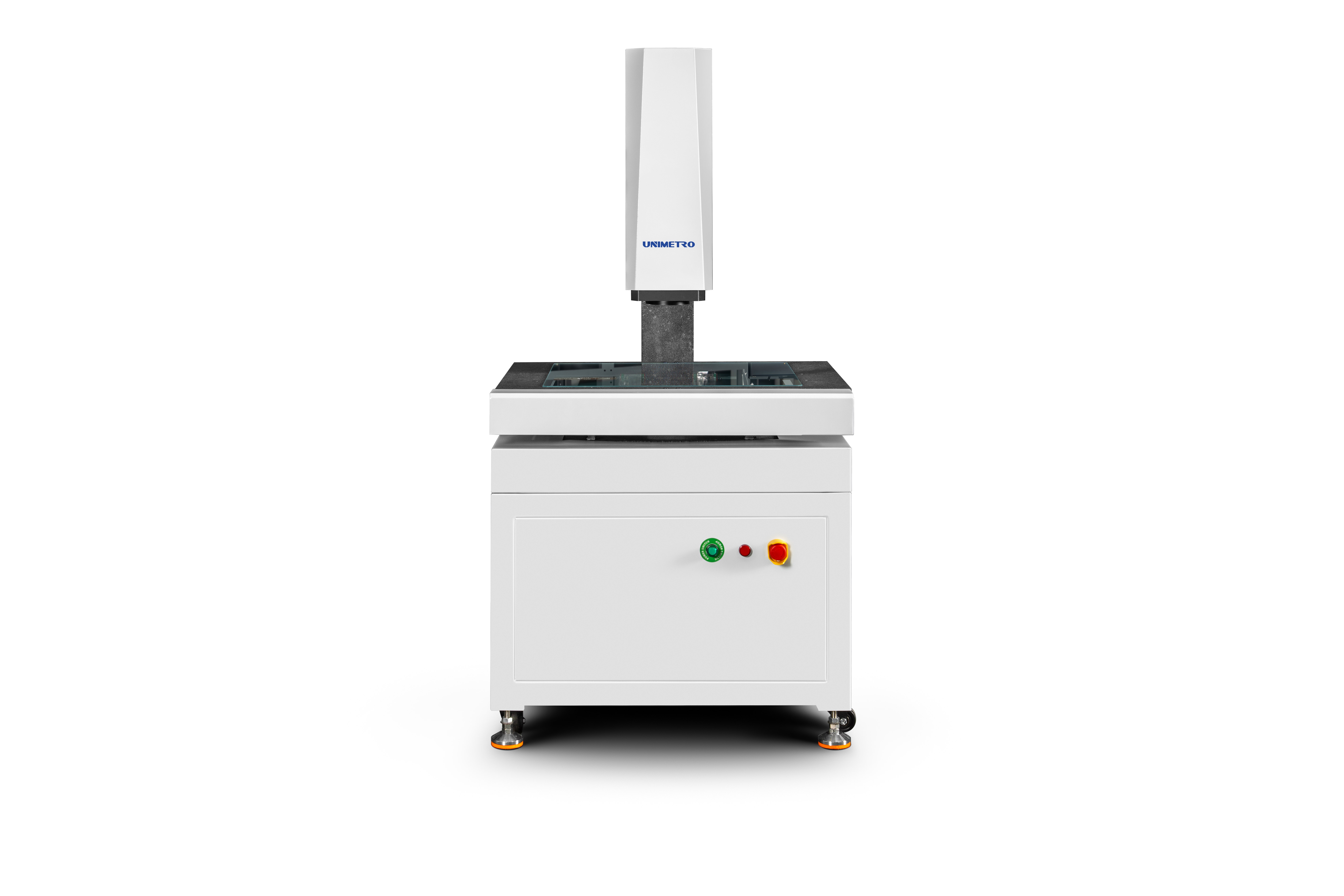

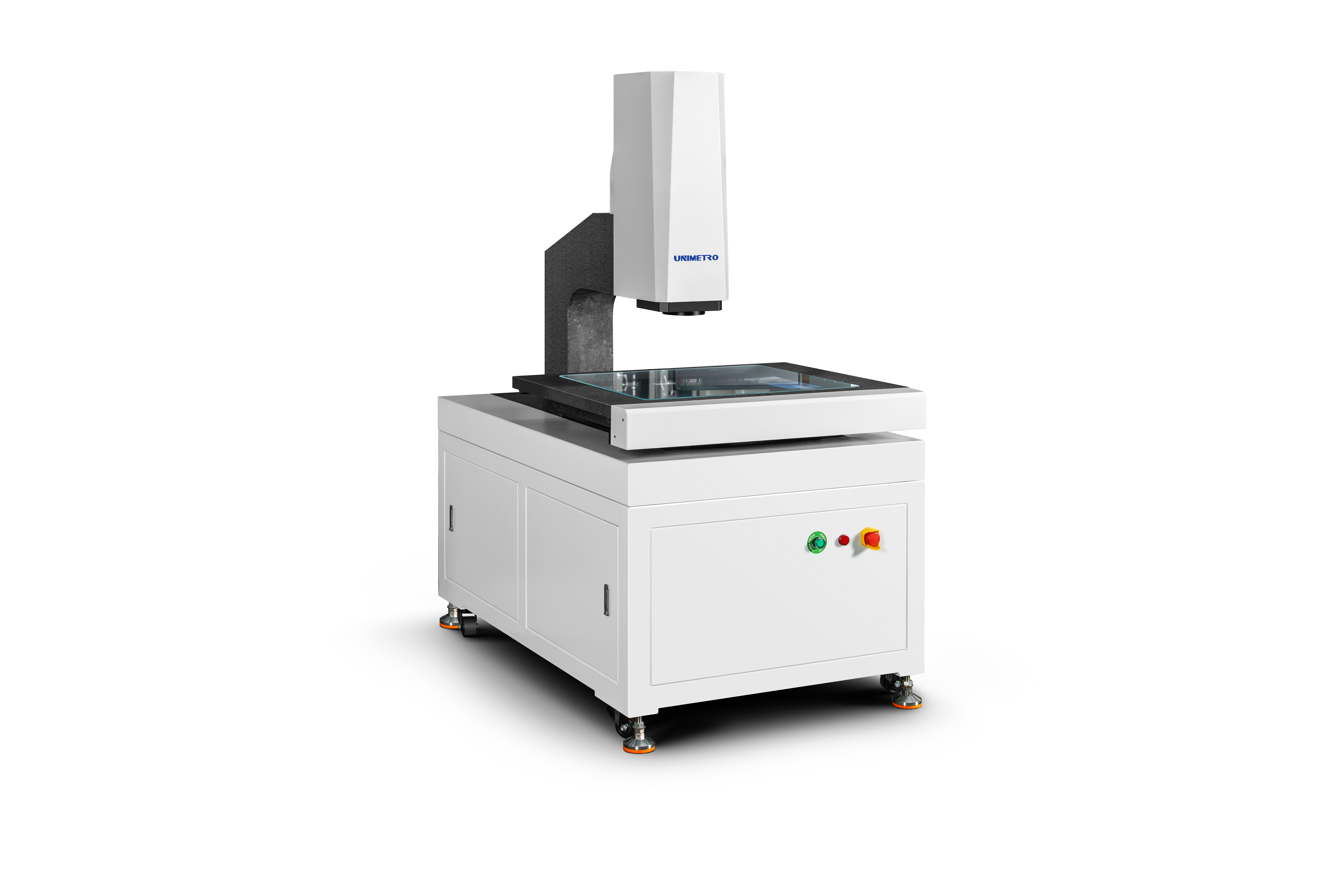

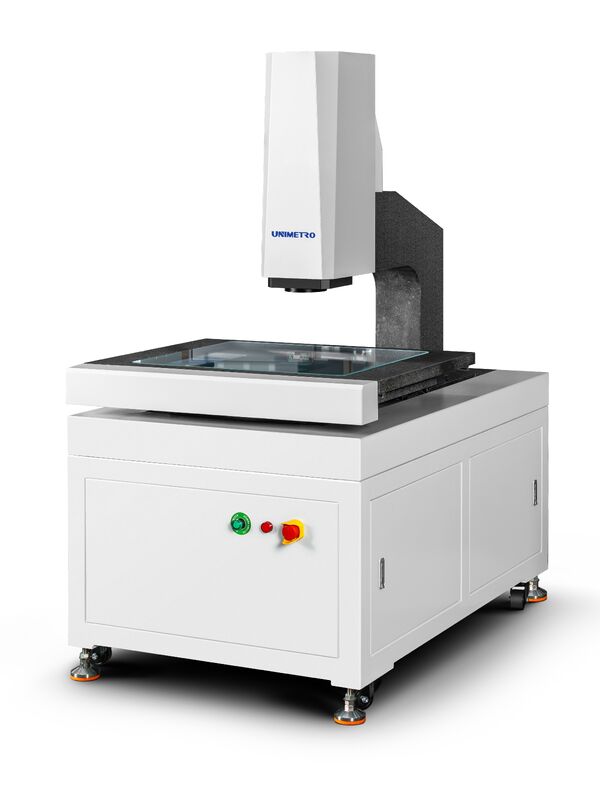

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring MARB (Multi-Axis Resolution Base) and SV (Super/Stable Video) technologies. This high-configuration system delivers superior resolution and faster processing speeds, offering robust functionality for demanding industrial applications.
Capable of three-axis fully automatic programmable detection, this system matches workpiece coordinate systems through programming to automatically execute measurement processes. For repeated measurements of heavy workpieces, it features memory, learning, and auto-programming functions, enabling rapid and accurate real-time measurement on-site.
Constructed with high-stability marble components that offer strong durability and low maintenance costs, this instrument perfectly balances high precision, high efficiency, and long-term durability, making it the core tool for quality control in large-scale, complex and precise manufacturing industries.
| Model | SV-3 | SV-4 | SV-5 | SV-6 |
|---|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 650/950/1740 | 730/1040/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300×200×200 | 400×300×200 | 500×400×300 | 600×500×200 |
| Accuracy (μm) | 2 +L/200 | 2 +L/200 | 2 +L/200 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
Work Distance: 85 mm

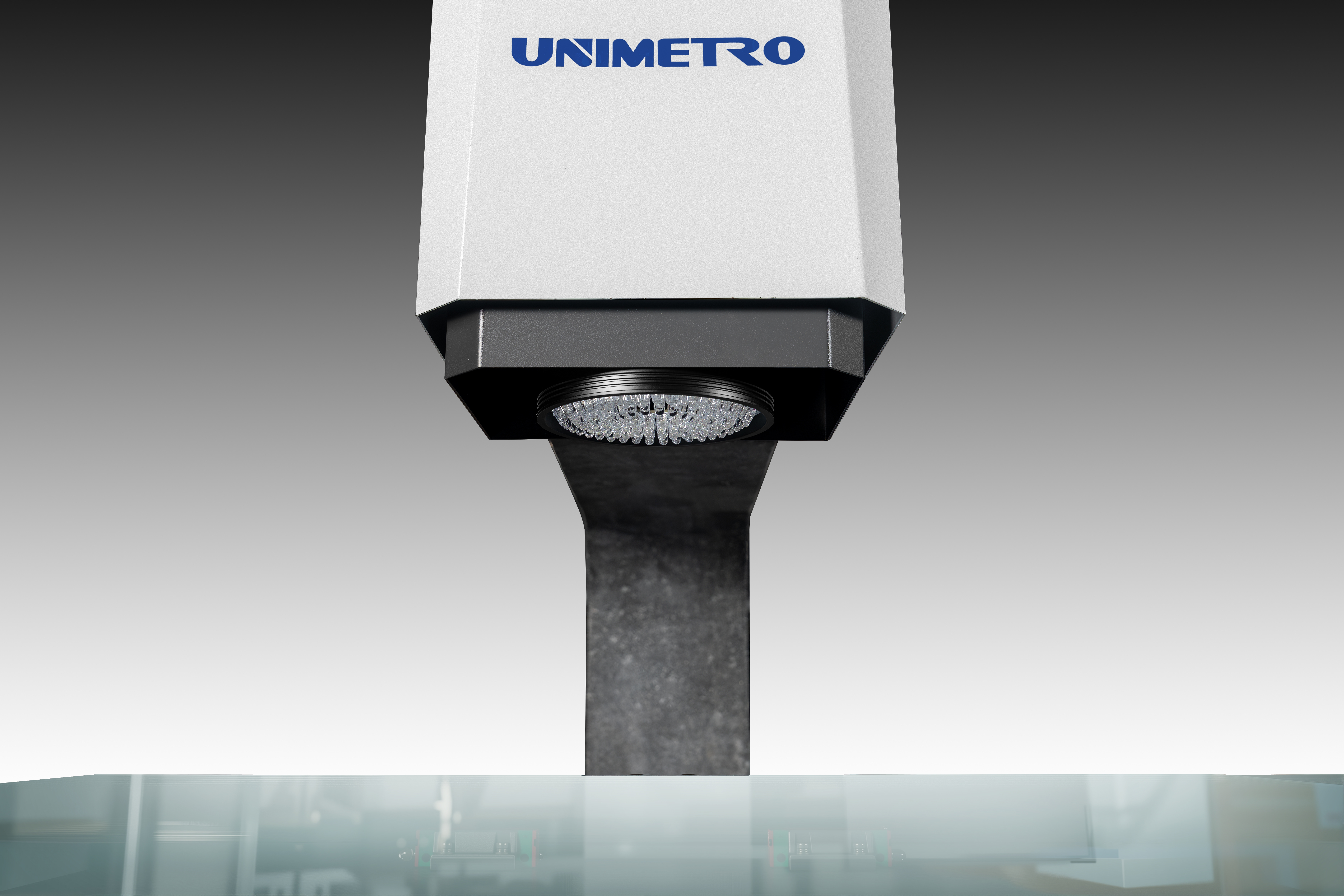

Illumination: Programmable surface light, LED bottom parallel light (Optional: coaxial light)
Drive system: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear scale resolution: 0.1μm
High Rigid Structure Design:
High Precision Configuration:
Optional Multi-Sensor for 3D Measurement:
HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. It also supports non-contact sensors such as probe and laser, and is compatible with RENSHAW full series of probe brackets, enabling automatic transformation of full-scale measurement on a single device to significantly improve productivity.
