| Miejsce pochodzenia: | Guangdong, Chiny |
|---|---|
| Nazwa handlowa: | UNIMETRO |
| Orzecznictwo: | CE,ISO |
| Numer modelu: | Seria HP |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Drewniana skrzynka + pakiet próżniowy |
| Czas dostawy: | 15 ~ 20 dni |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 5 zestawów miesięcznie |

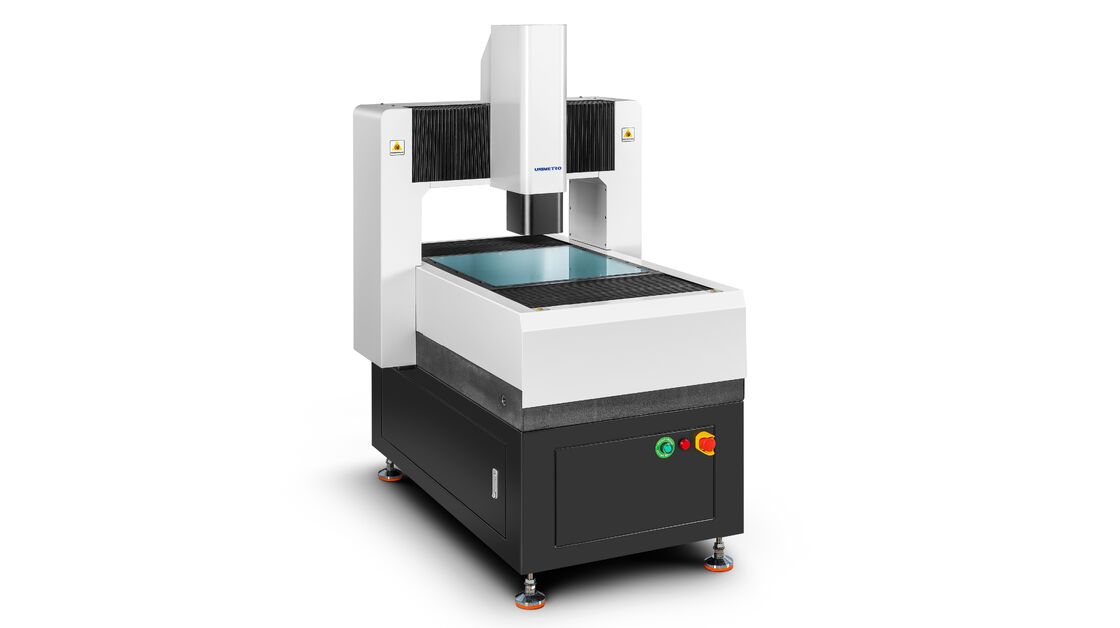

| Model: | Seria ON | Nazwa produktu: | W pełni automatyczny przyrząd do pomiaru obrazu (typ nieruchomy portalowy) - HP442 |
|---|---|---|---|
| Powtarzalność: | 1,5um | Dokładność: | 1,6+L/200um |
| Rozdzielczość skali liniowej: | 0,5um (0,1um dla opcjonalnie) | Tryb pomiarowy: | W pełni automatyczny |
| Wsparcie: | OEM, ODM, dostosuj | Sceneria aplikacji: | Laboratorium/Przemysł |
| Gwarancja: | 12 miesięcy | Waga (kg): | 560 |
| Pomiar wściekłości: | 400/400/200 | ||
| Podkreślić: | HP CNC vision measuring machine,semiconductor inspection measurement machine,micron precision vision measurement system |
||
HP: High-Precision (High Precision)
The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP 662 | HP 872 |
|---|---|---|---|
| Dimensions (mm) (X x Y x Z) | 920*1200*1600 | 1120*1400*1600 | 1320*1600*1600 |
| Measuring range (mm) (X x Y x Z) | 400*400*200 | 600*600*200 | 800*700*200 |
| Accuracy (um) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (um) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
| Resolution | 0.5μm (0.1um for option) | ||
| Camera | Industrial-grade color CCD camera | ||
| Lens | 1x-10x (Variable magnification) | ||
| Magnification | 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.) | ||
| Video Magnification | 18~195X (According to the different models of the selected camera; the actual magnification is subject to the measured data) | ||
| Work Distance | 85mm | ||

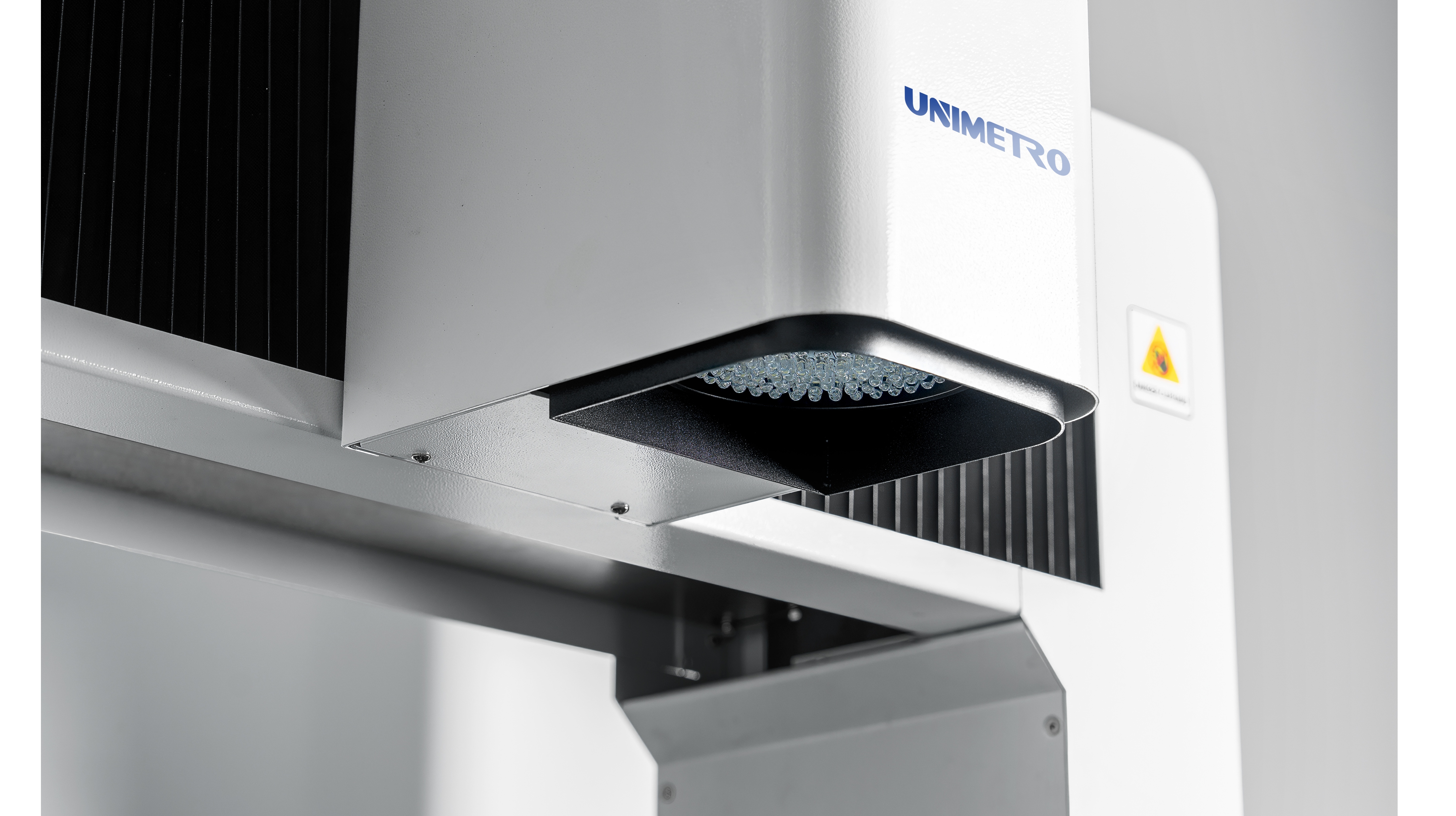

| Illumination | Programmable surface light, LED bottom parallel light (optional: coaxial light) | ||
| Drive system | CNC control, linear motor drive; Handle control, mouse/keyboard control | ||
| Linear scale resolution (um) | 0.1um | ||
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
