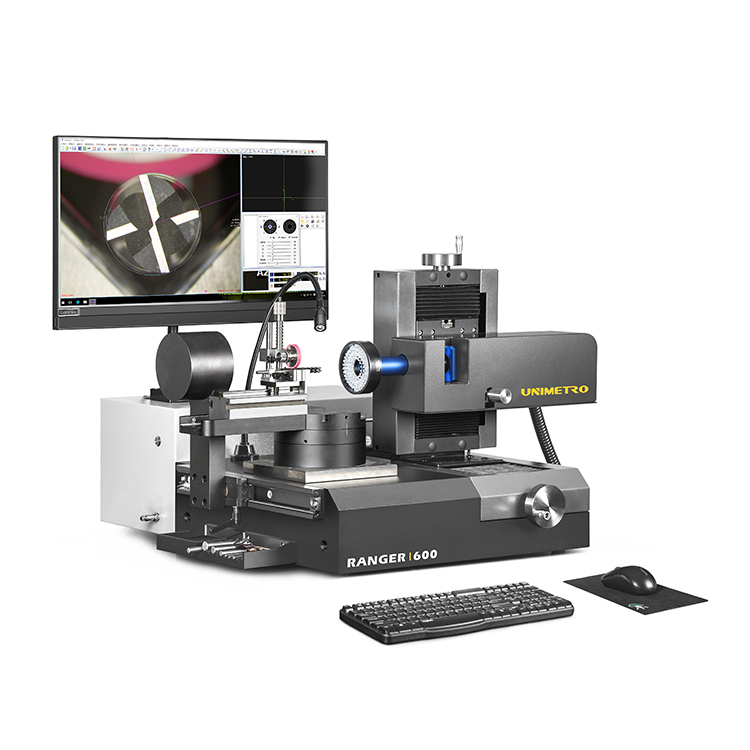

UNIMETRO RANGER600 Tool Video Measuring System
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 0 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 1 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 2
Product Application
The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Its compact design and stability make it suitable for metrology rooms, receiving inspection, or direct production use. Configured with SMARTOOL universal measuring software, it provides comprehensive control of special tool geometries through a simple PUT-MEASURE-ANALYSE process.
Advanced Design Features
  • Ergonomic design with solid construction
  • HD image capturing with optional microscope magnification

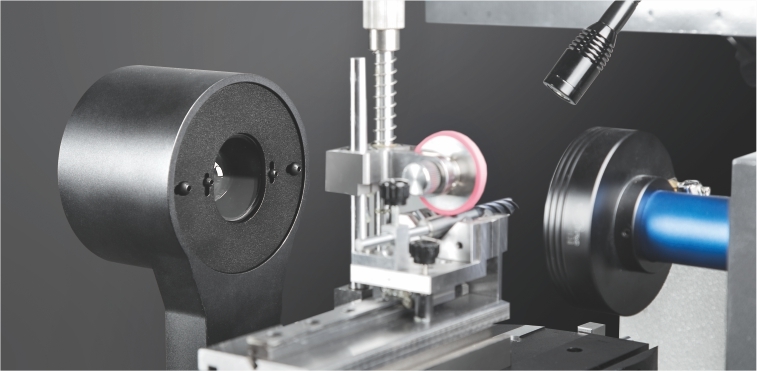

  • Stable V-block for secure tool holding and alignment
  • Mechanical fixed measuring angles at 0° and 90°
  • High-accuracy embedded encoder for precise angle location

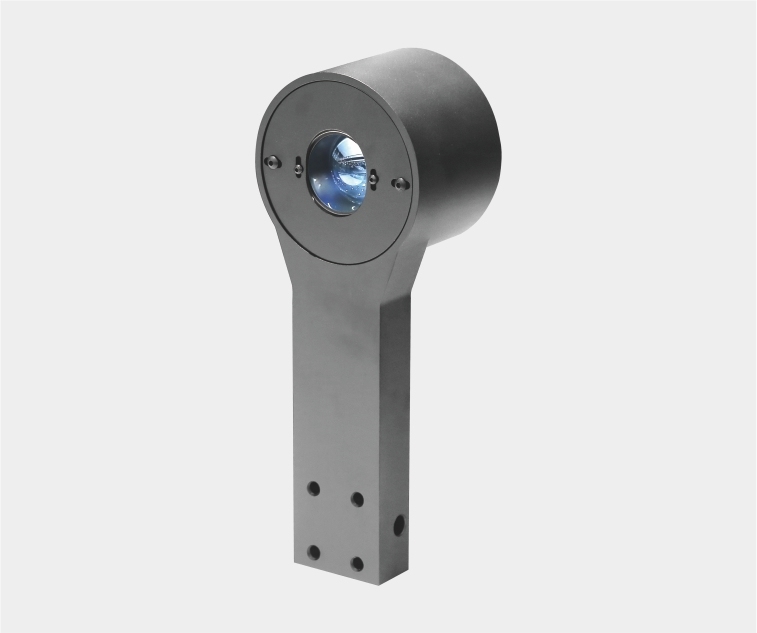

  • Programmable LED ring light with contour and auxiliary lighting
  • SMARTOOL software with automatic edge detection and CAD comparison
  • Excel and CAD file output capability
  • All-in-one PC system for enhanced stability
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 3 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 4 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 5
Multiple Angle Measurement Capabilities

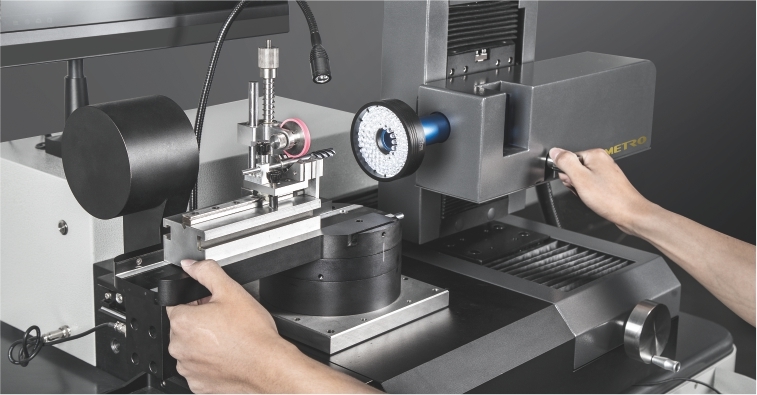

The rotary table offers mechanical fixed angles at 0° and 90° positions. The 0° position measures tool ends, center shafts, and front angles, while the 90° position measures helix angles, axial front angles, and rear angles. The embedded encoder provides precise angle location for any required measurement.
0° Position
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 6
45° Position
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 7
90° Position
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 8
Technical Specifications
Parameter Value
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Field of view 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm (L is measured length)
PC ALL-IN-ONE PC system, Windows 10 OS, 24" LCD monitor
Illumination 8-section LED ring light, contour light, flexible auxiliary light
Input format DXF files
Output format EXCEL, DXF
Key Features
Easy Operation
High-resolution image display with graphical interface and on-screen function keys.
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 9
Dynamic Real-Time Curve View
Real-time edge detection curve view for intuitive measurement analysis.
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 10
CAD Comparison
Compare actual tool images with CAD drawings for geometry evaluation.
Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 11
About UNIMETRO
With over 10 years of experience in metrology, UNIMETRO specializes in high-performance measuring solutions. Our product line includes vision measurement machines, coordinate measurement machines, profile projectors, and core optical components. We offer complete technical support and flexible solutions for global partners.

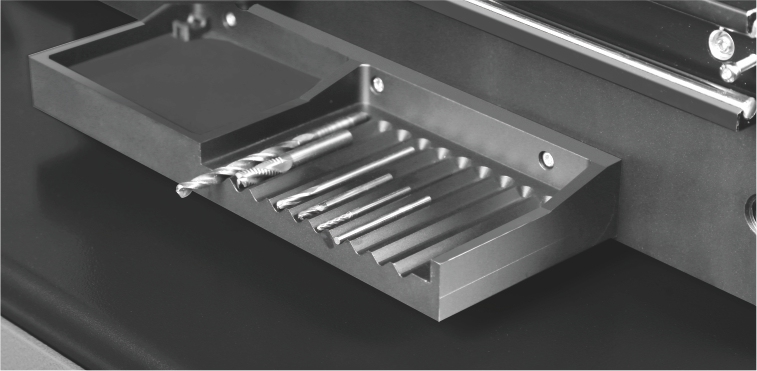

Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 12 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 13 Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine 14
