| Miejsce pochodzenia: | Guangdong, Chiny |
|---|---|
| Nazwa handlowa: | UNIMETRO |
| Orzecznictwo: | CE,ISO |
| Numer modelu: | Seria SV |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Drewniana skrzynka + pakiet próżniowy |
| Czas dostawy: | 15 ~ 20 dni |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 5 zestawów miesięcznie |
| Model: | Seria SV | Nazwa produktu: | W pełni automatyczna maszyna do pomiaru wzroku - SV3 |
|---|---|---|---|
| Powtarzalność: | 2 um | Dokładność: | 2+L/200um |
| Rozdzielczość skali liniowej: | 0,5um (0,1um dla opcjonalnie) | Tryb pomiarowy: | W pełni automatyczny |
| Wsparcie: | OEM, ODM, dostosuj | Sceneria aplikacji: | Laboratorium/Przemysł |
| Gwarancja: | 12 miesięcy | Waga (kg): | 400 |
| Pomiar wściekłości: | 300/300/200 | ||
| Podkreślić: | SV Series optical measuring instrument,3-axis auto programming inspection machine,MARB base vision measurement machine |
||

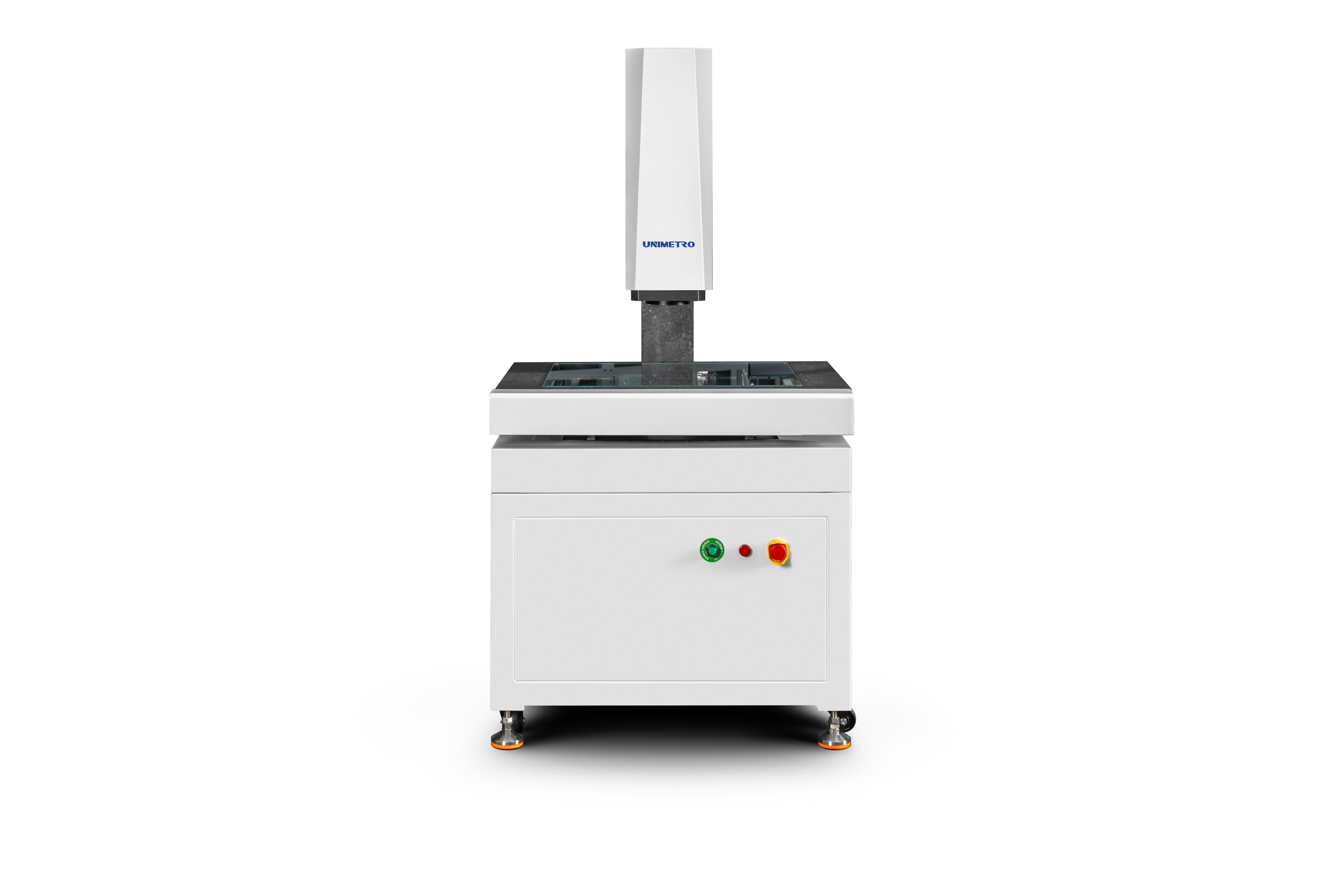

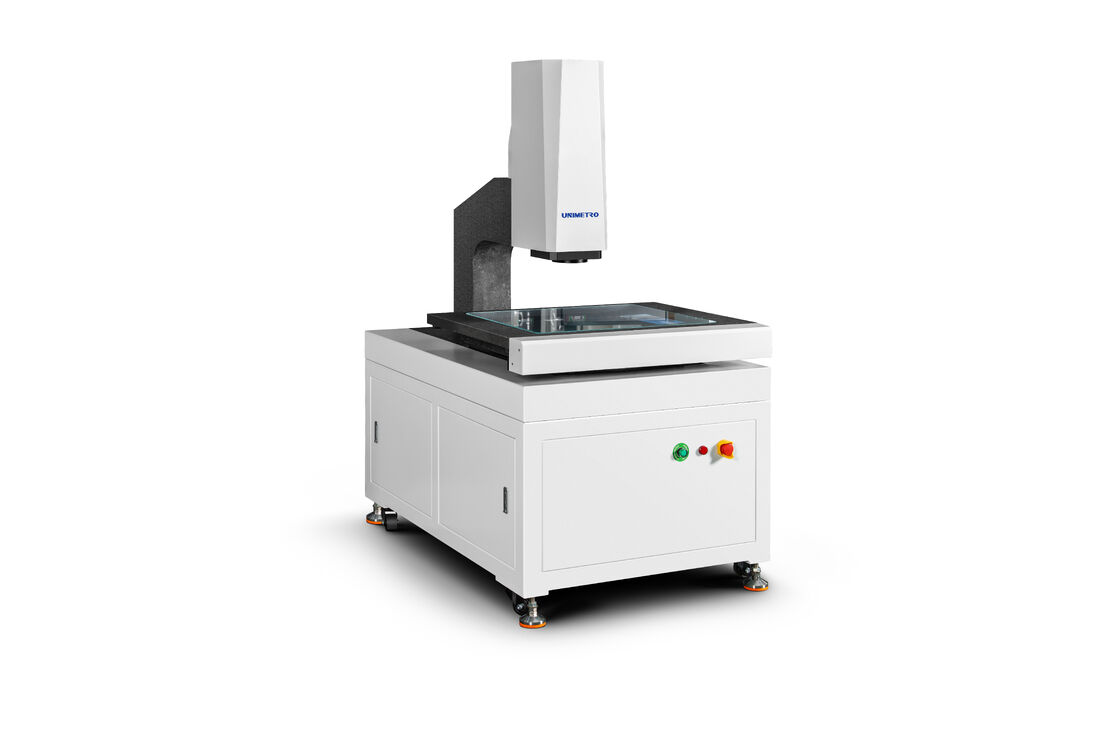

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring Multi-Axis Resolution Base (MARB) and Super Stable Video (SV) technology. This high-configuration system offers superior resolution and faster processing speeds, enabling three-axis fully automatic programmable detection.
By matching the workpiece coordinate system through programming, it automatically executes measurement processes. For repeated measurements of heavy workpieces, it includes memory, learning, and auto-programming functions, facilitating rapid and accurate real-time measurement on-site. The marble construction provides high stability, strong durability, and low maintenance costs, perfectly balancing precision, efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.
| Model | SV-3 | SV-4 | SV-5 | SV-6 |
|---|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 650/950/1740 | 730/1040/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300×200×200 | 400×300×200 | 500×400×300 | 600×500×200 |
| Accuracy (μm) | 2 + L/200 | 2 + L/200 | 2 + L/200 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and accommodates RENSHAW full series probe brackets, enabling automatic transformation for full-scale measurement on a single device to maximize productivity.
