| Miejsce pochodzenia: | Guangdong, Chiny |
|---|---|
| Nazwa handlowa: | UNIMETRO |
| Orzecznictwo: | CE,ISO |
| Numer modelu: | Seria HP |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Drewniana skrzynka + pakiet próżniowy |
| Czas dostawy: | 15 ~ 20 dni |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 5 zestawów miesięcznie |
| Model: | Seria ON | Nazwa produktu: | W pełni automatyczny przyrząd do pomiaru obrazu (typ nieruchomy portalowy) - HP442 |
|---|---|---|---|
| Powtarzalność: | 1,5um | Dokładność: | 1,6+L/200um |
| Rozdzielczość skali liniowej: | 0,5um (0,1um dla opcjonalnie) | Tryb pomiarowy: | W pełni automatyczny |
| Wsparcie: | OEM, ODM, dostosuj | Sceneria aplikacji: | Laboratorium/Przemysł |
| Gwarancja: | 12 miesięcy | Waga (kg): | 560 |
| Pomiar wściekłości: | 40/400/200 | ||
| Podkreślić: | HP Series VMM 3D vision machine,Non-contact measurement 3C inspection,Precision inspection vision measurement machine |
||
HP: High-Precision (High Precision)

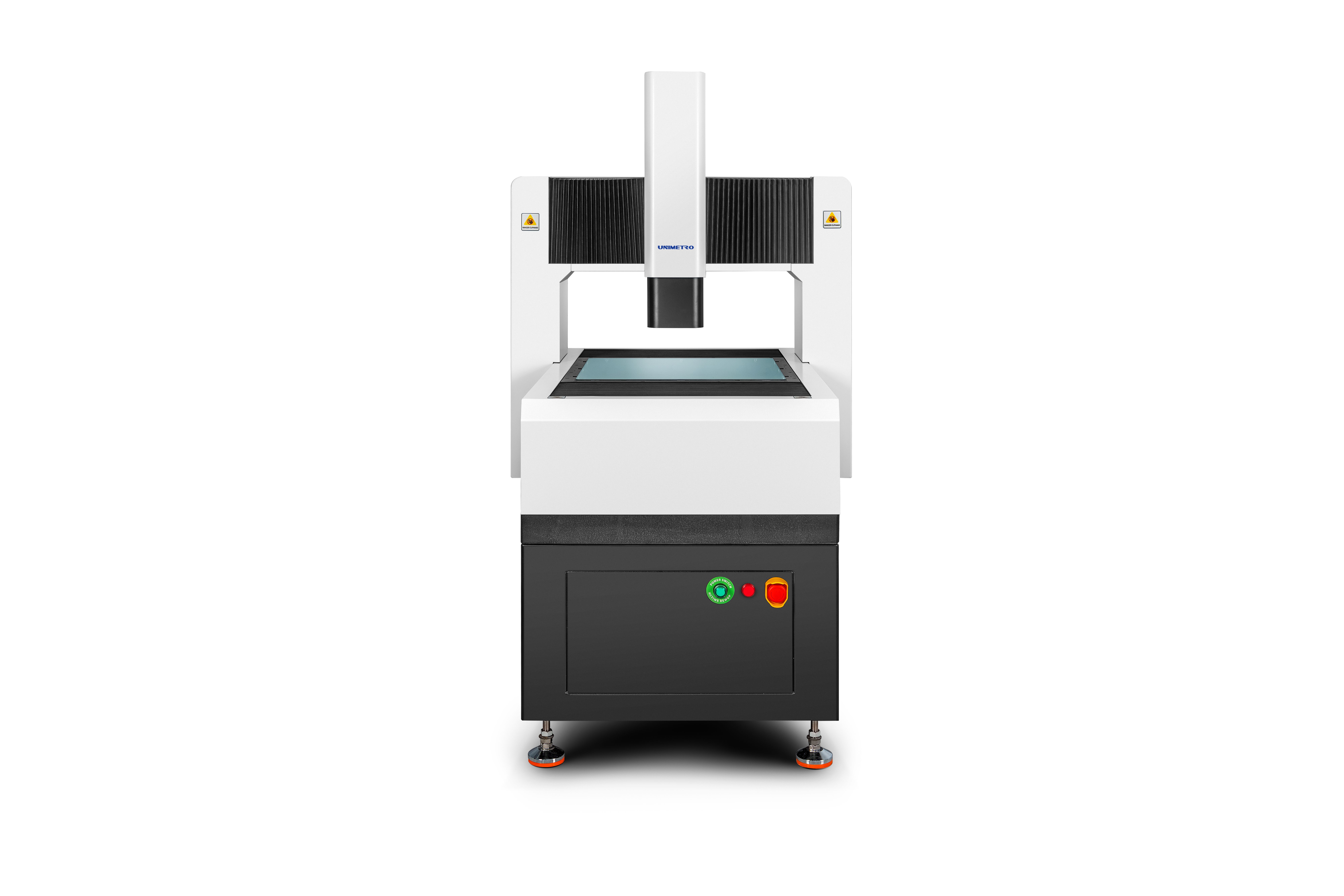

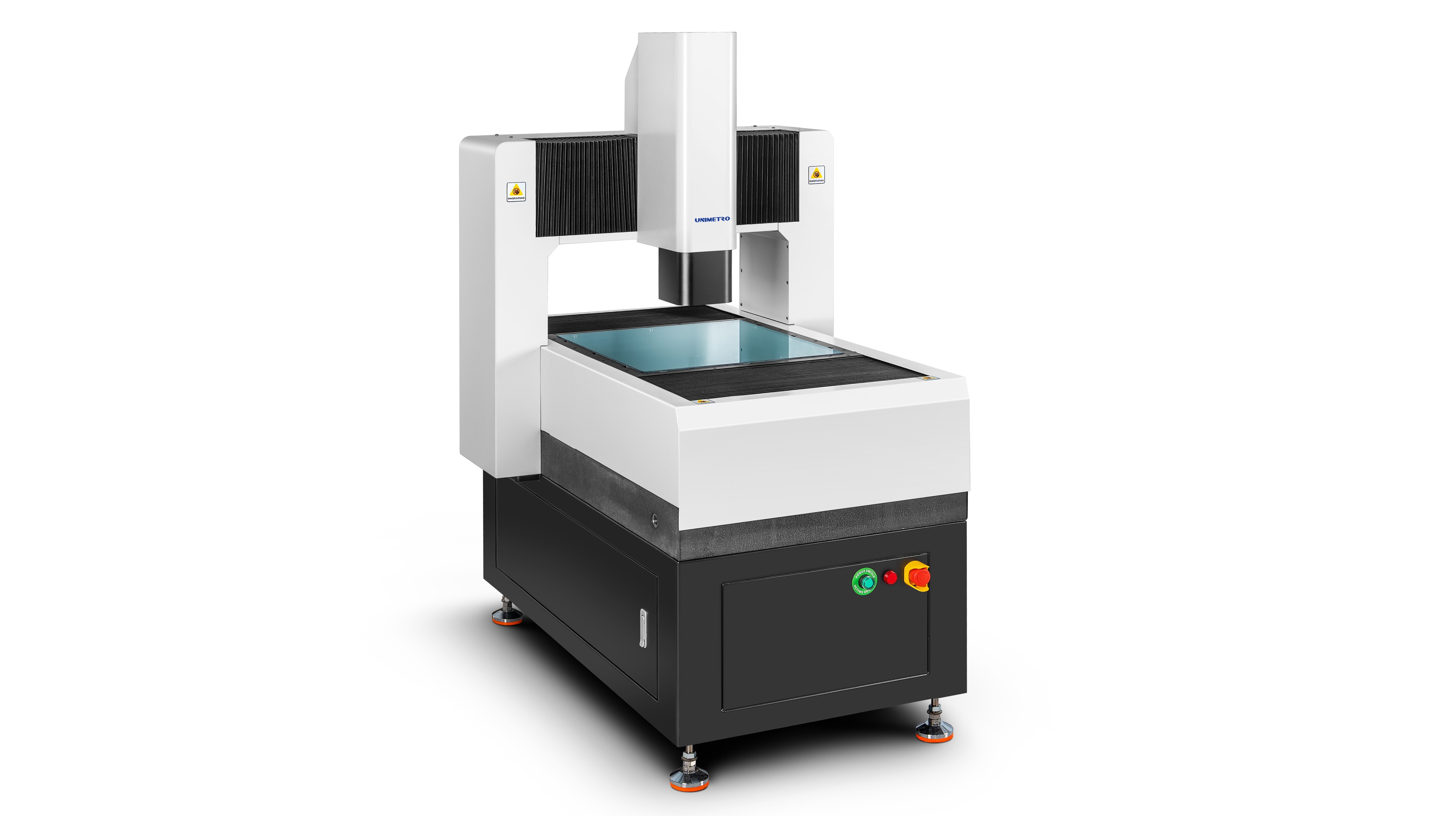

The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP662 | HP872 |
|---|---|---|---|
| Dimensions (mm) (X × Y × Z) | 920×1200×1600 | 1120×1400×1600 | 1320×1600×1600 |
| Measuring range (mm) (X × Y × Z) | 400×400×200 | 600×600×200 | 800×700×200 |
| Accuracy (μm) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (μm) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
Video Magnification: 18~195X (According to the different models of the selected camera; the actual magnification is subject to the measured data)
Work Distance: 85mm
Illumination: Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive system: CNC control, linear motor drive; Handle control, mouse/keyboard control
Linear scale resolution: 0.1μm
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
