2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

    • 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
    • 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter
  • 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

    Szczegóły Produktu:

    Place of Origin: USA
    Nazwa handlowa: External Array
    Model Number: Rational Vue

    Zapłata:

    Minimum Order Quantity: 1
    Packaging Details: Paper box
    Delivery Time: 5 work days
    Payment Terms: T/T
    Supply Ability: 10 per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Edge Function: Included Compatible measuring type: Vision measuring
    Contour scanning: Automatic Filter: Color filter and grey filter
    Analysis function: data analysis, SPC, CAD reverse, Formerror analyzing



    3D Measurement Software 2D VMM Measuring Software Edge Function Filter Function



    The Rational Vue 2D Measurement Software series offers universal and powerful 2D image measuring function to users. It offers basic elements measuring such as points, lines, angles, circles, distance, etc. The Rationvue series provides outstanding motion control to the automatic machine. Together with the strong edge detecting function and easy pprogramming, ensures very high measuring efficiency in mass measuring. It is the best vision measuring software in cell phones, plastic products, electronics, etc which need mass production and quality control.



    Features



    The thoughtful machine calibration improves accuracy greatly.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    RationalVue offers CCD length-width scale calibration, CCD auto-rotate/horizontal calibration, CCD lens coaxial calibration and CCD pixel calibration, With multiple calibration methods, RationalVue uttermost improves measure accuracy of machine, Moreover, RationalVue developed lens distortion calibration which enhances the precise of large wide-angle lens dramatically. We pay highly attention to precise improvement, even for 0.1um.



    Burrs filtering



    RationalVue can filter burrs of measure product that removes those convex or concave places to measure completely with a great accuracy.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter





    The edge function of RationalVue can capture those fuzzy and rough edges easily. It means truly realize the automation measurement.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

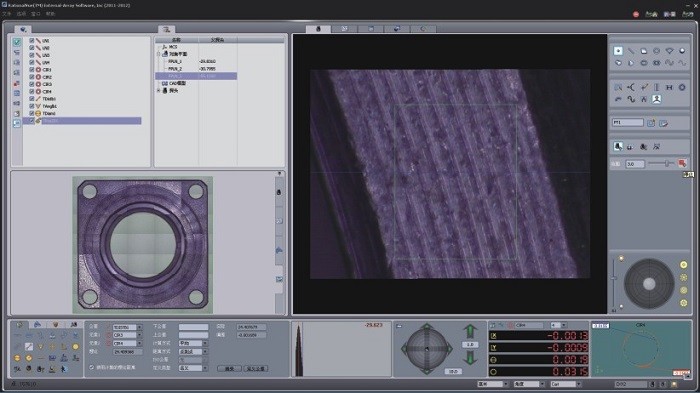

    Color filter



    Set required measuring color; remove the effect of the other colors



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    Grey level filtering, remove white highlight edge effect. Filter the unmeasured edge to ensure weak

    edge will not be affected by clearer edge



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

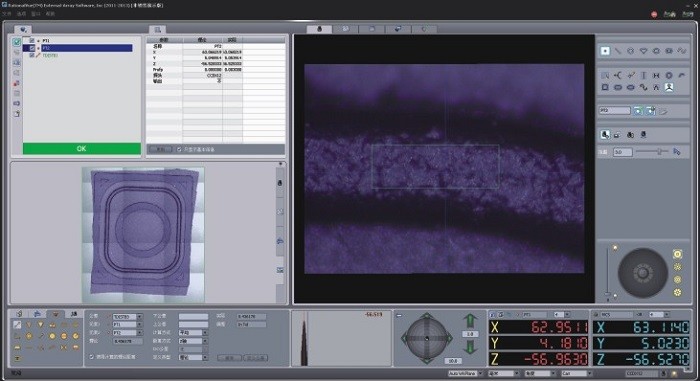

    Special Edge processing





    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



        Remove edge impurities            Remove the effect of black        Remove the effect of white

                                                                     shadow edge                             highlight edge



    RationalVue has many measuring settings. They all can be set according to real situation to satisfy different measurement to complete CNC inspection.



    Complete feature measurement



    RationalVue provides measure point, line, circle, arc, ellipse, slot, rectangle and curve scan, and girth and flaw area. And make form comparison with CAD nominal curve.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    Powerful Edge function



    RationalVue adopts advanced weak-edge algorithm. Measurement of weak-edge line can be finished without any special settings.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    Optical focusing



    With world advanced focus algorithm under independently development, RationalVue can quick and exact complete part focus with 2-3 seconds. The repeat focus can reach to 0.003 mm which can be used for the tolerance measurement, such as height, flatness etc.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    Curve scan & FormError Analysis



    RationalVue can track product edge automatically to scan edge curve profile of any product. And it also can make profile comparison with imported CAD nominal curve, calculate curve profile, and output curve FormError graphical report.



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter 2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter



    Grid board measurement



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

    RationalVue has a professional measuring tool special for grid board that can achieve measuring of grid line easily. It is suitable for solar energy, TV industry etc.



    Multi-layer segment measurement



    2D VMM Video Measurement Software With Edge Measuring Grey / Color Filter

    RationalVue can realize multi-layer line by one-button, and it allows user to select any line of them.



    Advanced sub-pixel algorithm



    RationalVue adopts international advanced sub-pixel algorithm to make measurement accuracy increasing dramatically. By comparison test, it shows that select video measuring machine with RationalVue will increase precise and repeatability greatly.



    Path optimization



    Path optimization will make measure path to shortest. It can enhance measurement efficiency as much as possible to reduce cost for customers.

    Remove edge impurities
