    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: UNIMETRO
    Model Number: FlexFix

    Zapłata:

    Minimum Order Quantity: 1
    Packaging Details: Paper box
    Delivery Time: 5 work days
    Payment Terms: T/T
    Supply Ability: 30 per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Base Board Size: From 300 x 300 mm Kits components quantity: 108 pcs or OEM
    Base board surface processing: Hard Anodizing Packing suitcase: Included
    Thread holes: M6 / M8 for option



    Flexible 3D Coordinate Measuring Machine Fixture Package Base Board And Kits



    CMM fixtures


    The Unimetro FlexFix series CMM fixtures package includes a wide choice of standard size base boards and an extensive option of components with M6 or M8 threaded fittings. It is suitable for the fixturing of parts for aerospace, automotive, electronics, industrial or medical applications, the fixture package will
    offer a complete solution.



    Flexible 3D Optical Coordinate Measuring Machine Baseboard / Fixture Kits Precision



    Fixturing solutions is able to be assembled quickly to increase the inspection speed. Each fixture board is laser printed with codes and all the fixturing component has a clearly labelled part number, offers easy documentation and records of the fixturing set-up. The same set-up can be reproduced for subsequent inspections quickly and accurately ; this can be especially helpful when a single kit is used in different applications or where there are different users. Identical fixturing set-ups are important to improve the
    repeatability and accuracy of measuring by eliminating errors caused by the fixturing offset from the
    process.

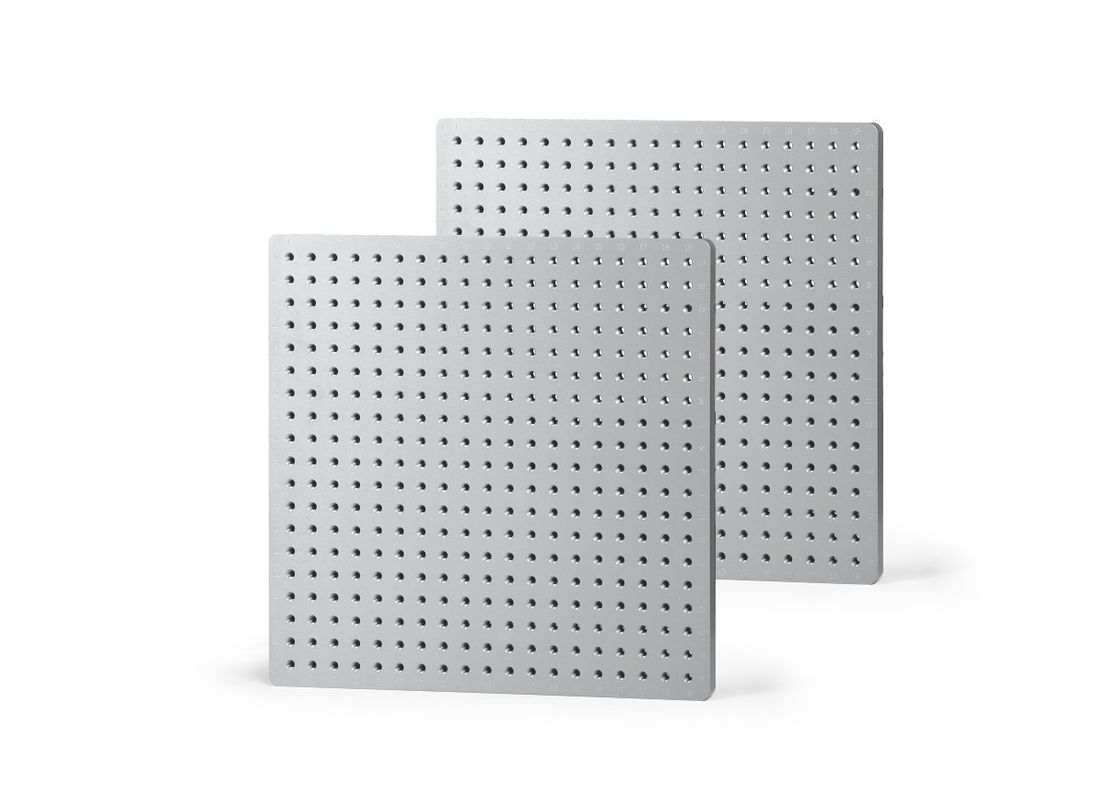

    Base boards



    Base board of 300 x 300mm, with thread holes distance 13mm



    Flexible 3D Optical Coordinate Measuring Machine Baseboard / Fixture Kits Precision



    Base board of 400 x 400mm, with thread holes distance 13mm



    Flexible 3D Optical Coordinate Measuring Machine Baseboard / Fixture Kits Precision



    Fixturing example on a CMM plate 300 mm x 300 mm and 400mm x400mm



    Flexible 3D Optical Coordinate Measuring Machine Baseboard / Fixture Kits Precision



    Components



    The Unimetro FlexFix series CMM fixtures can be purchased in package or components can be purchased separately. A packege consists of one base plate and a comprehensive set of components. Users choose the suitable package based on the parts which are going to be fixtured and measuring.



    All the components or base boards are available separately, any OEM are also available, users can reffer to the list below or offer the OEM drawing to our service staffs to get more details.



    Item Serial No. Qty.
    Press block 800021 4
    Short tension press supporter 800022 2
    Long tension press supporter 800023 2
    Tension supporter 800010 2
    Screw supporter 800011 2
    Height adjustable supporter 800013 2
    Flexible supporting block 800020 8
    Magnetic supporter 800014 4
    Aluminum cone 800024 3
    Nylon cone 800025 3
    Base board fixing screws 800017 2
    Components fixing screws 800019 4
    Flat supporter 800015 2
    Positive adapter 800016 6
    Multi-direction adapter 800012 2
    Small clip 800022 2
    Supporting rod 12*20mm 80007 6
    Supporting rod 12*30mm 80002 6
    Supporting rod 12*50mm 80001 6
    Supporting rod 16*20mm 80008 6
    Supporting rod 16*30mm 80004 6
    Supporting rod 16*50mm 80003 6
    Supporting rod 20*20mm 80009 6
    Supporting rod 20*30mm 80006 6
    Supporting rod 20*50mm 80005 6
    Auxiliary screw driver 800026 2
    Free direction V type supporting rod 800018 2
    Kits plate 800027 1

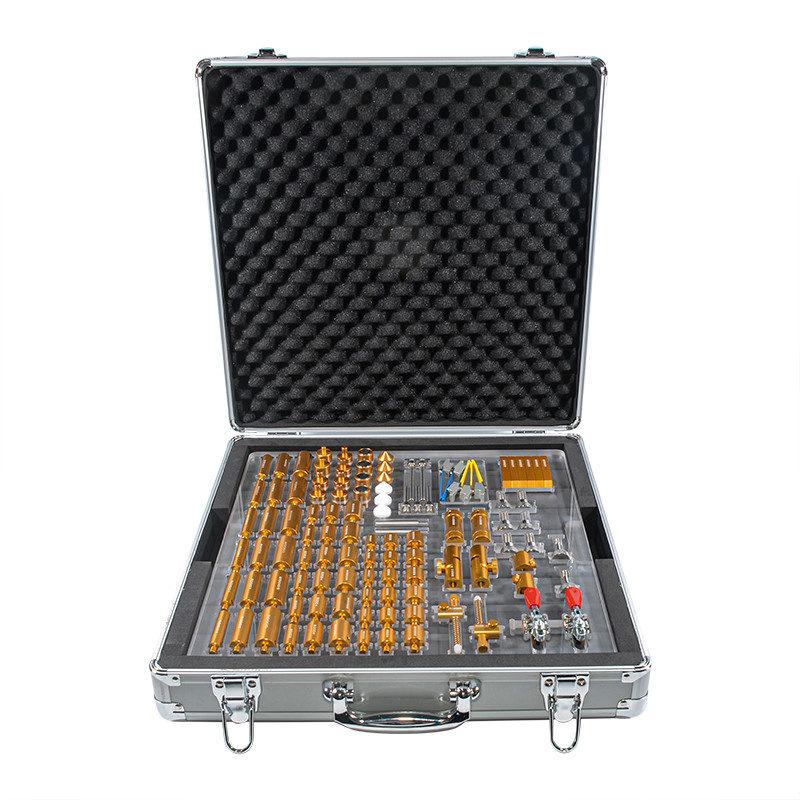

    Packing suitcase
