|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Paper box|
|Delivery Time:||7 work days|
|Supply Ability:||10 per month|
|Base material:||Steel||Guide way:||Hiwin linear guide way|
|Supporting blocks:||Included||Gauges combine:||Available|
Callipers Calibration CMM Fixture Kits Gauges Fixtures Gauges Combining

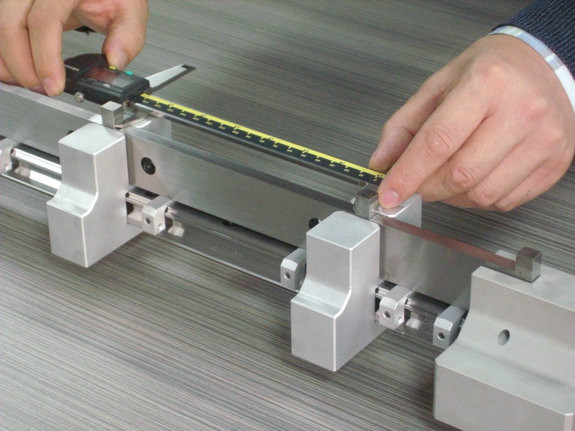

The UNIMETRO Calliperfix series gauges fixturing system is designed for the callipers calibration. The unique design ensures the best combining of the gauges. The whole system is stable and reliable, able to clamp and combine different size of gauges, it is the ideal fixture for the CNAS institution and callipers manufacturers.
Reasonable design concept
The system base is using steel material, ensures the operation stability during the callipers calibration, offers more accurate and scientific detecting data.
Flexibly adjusting moving block
The moving block is able to move within the working range to combine the gauges, available to combine multiple gauges for calibrating.
Outstanding locking structure
Using the holes on the guide way to lock the base, rotary locking screws make the supporting points to tension status then the gauges combining is effective.
Reasonable supporting points
When using the gauges length over 100mm the system is offering supporting blocks, ensures more accurate fixturing. The blocks are able to put at any position of the guide way, all the blocks are removable.
Offering double tension support points with constant force
One end of the gauges is using double supporting points offering locking force, each point is with tension constant force pressing, ensures full contact between the end plane and the other end of the gauges.
Self-adjusting fix single supporting point
The other end is using single supporting point, offers flexibility to the gauges movement, ensures it is full contact with the other combining plane.
